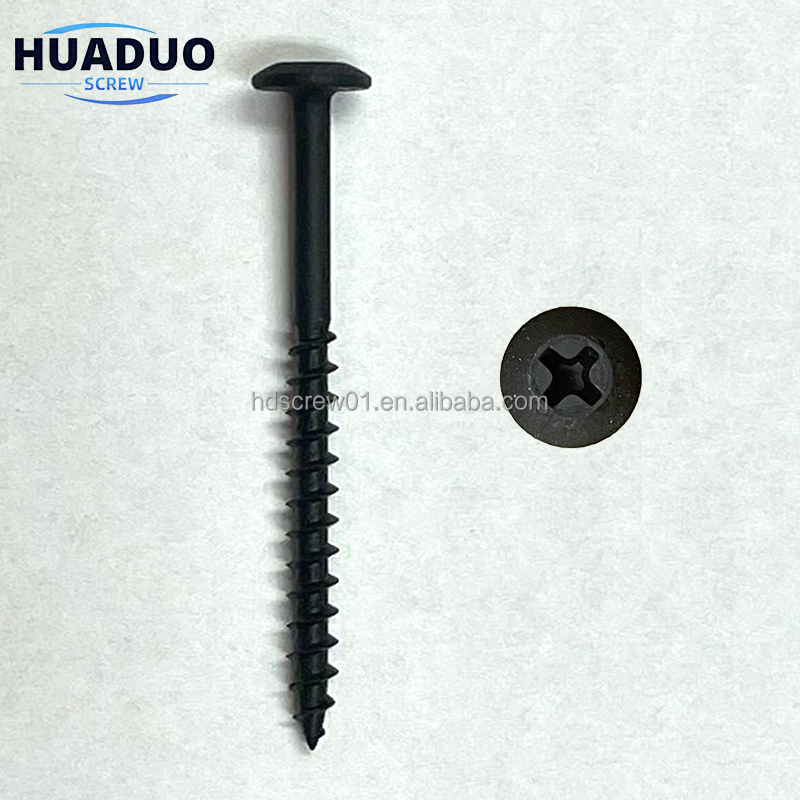

Phillips Inverted Edge Head Wood Furniture Screw

Drive Style: Phillips / Cross Head Inverted Edge

Material: Carbon steel, Stainless steel304,SS316

Size:

  • #6 #8 #10 #12 #14
  • 3.5mm-6mm
  • Support customization

Length:

  • 1″,1-1/4″,1-1/2″,2″,2-1/2″,3″
  • 25mm,32mm,38mm,51mm,64mm,76mm
  • Support customization

Thread:Coarse thread, Fine thread, Half thread

PRODUCT DETAILS:

Phillips Head Inverted Edge wood screw is designed specifically for use in woodworking applications, and the “inverted edge” feature typically refers to a special design at the screw’s tip or the geometry of the threading, which aids in better grip and reduced splitting of the wood. The specific uses of these screws include:

  1. Woodworking Projects: Ideal for joining or fastening wood components together. They can be used in furniture making, cabinet assembly, or carpentry.
  2. Decking and Exterior Wood: The inverted edge design may help when working with softer or pressure-treated woods, as it can reduce the risk of splitting.
  3. Construction and Framing: Used in structural framing where high grip and strength are needed for wood-to-wood connections.
  4. DIY and Home Improvement: Popular in home projects, such as securing wooden shelves, trim, molding, or attaching hardware like hinges to wooden surfaces.
  5. Wooden Fixtures and Fittings: Commonly used for attaching wood to other materials, like installing wooden handles, brackets, or other hardware that requires a sturdy connection.

In essence, Phillips Head Inverted Edge wood screws are versatile and designed to offer a secure, long-lasting hold in wood while minimizing damage to the material.
