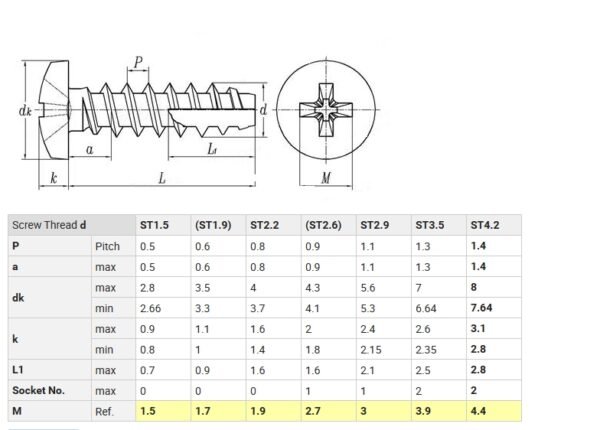

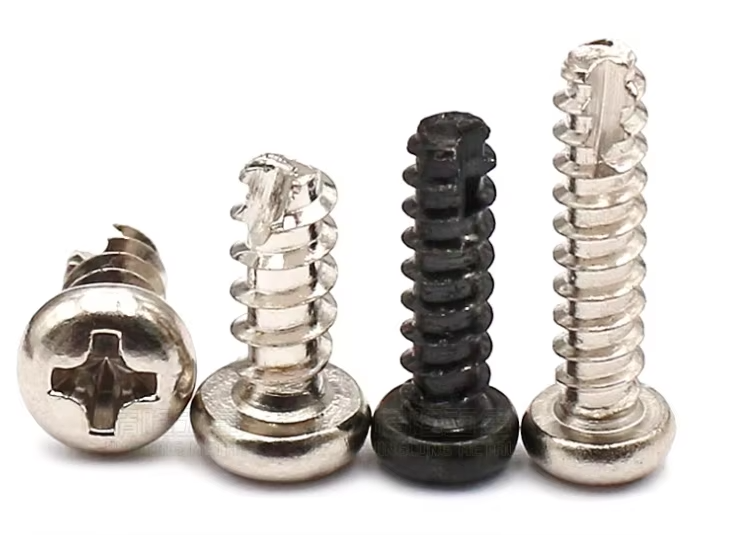

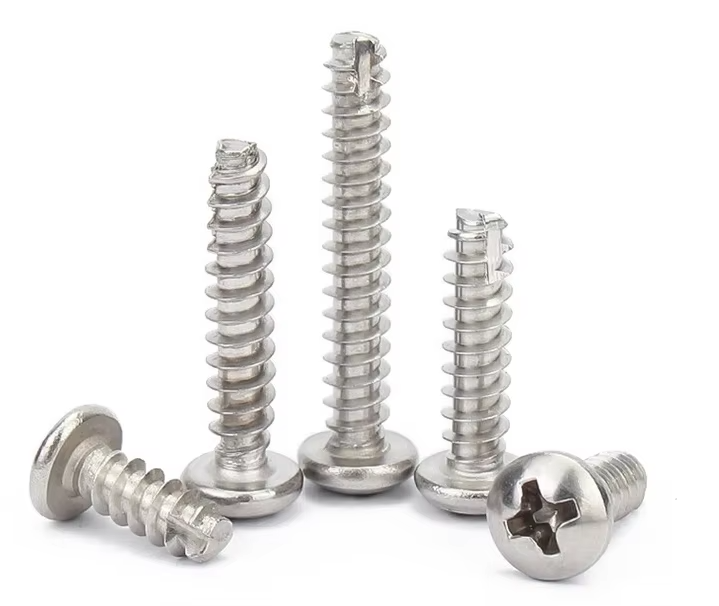

Pan Head Thread and Blunt Point Drive Euro Screw

A pan head screw is a type of screw with a flat, round top, often used for general purpose applications. The term “thread” refers to the helical ridge on the screw that mates with a corresponding helical groove in the screw hole to hold objects together. The thread can be fine or coarse, affecting the strength and the speed with which the screw can be inserted.

Quality of the mold
1.Use enough stainless steel nickel304,316 material.
2.Carbon steel C1022 material with450HV hardness

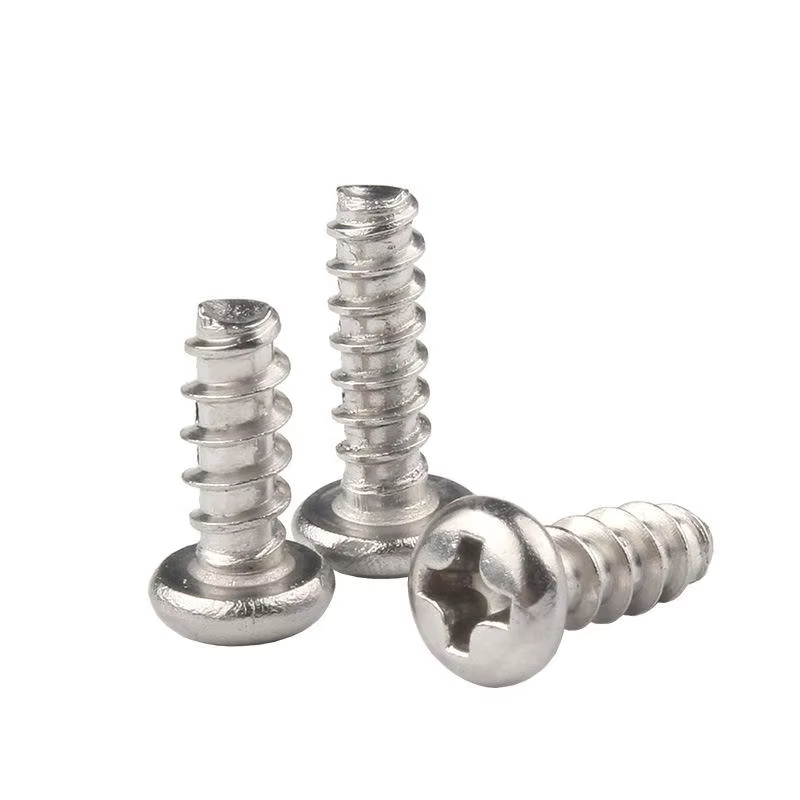

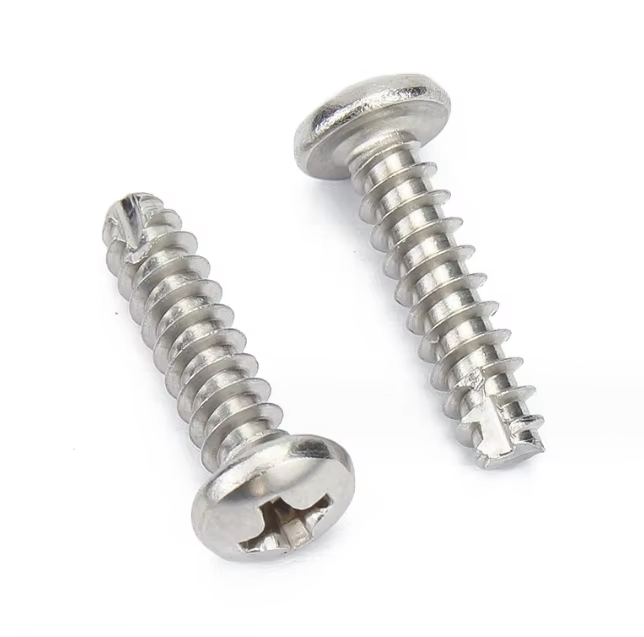

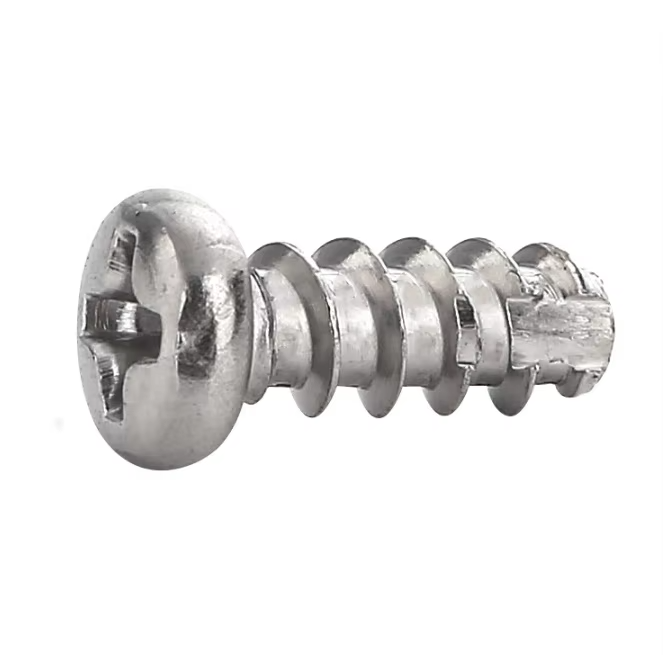

Thread Cutting Screws for Plastic
These screws cut threads into drilled holes as they’re turned, so they require lessdriving torque and cause less stress on material than thread-forming screws.Also known as Type BT and Type 25 screws, they have coarse threads that grip soft plastic

Most Commonly used to attach undermount, epoxy, and ball bearing slides in European cabinets with pre-drilled 32 mm system holes. Used in Euro 2 mm system applications where the advantage of a pan head flat surface mount is required

Pan Head Pozi Euro Screws are commonly used in applications where a nice and smooth surface is required, such as furniture making, decorative projects and some precision engineering. They can be either self-tapping screws or machine screws, depending on whether a pre-drilled hole is required.
