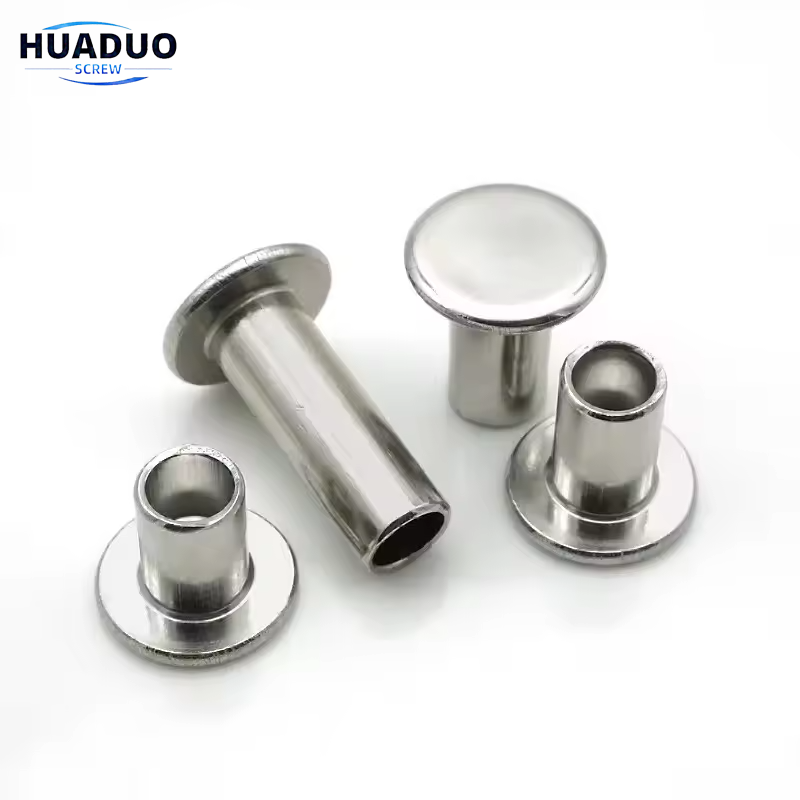

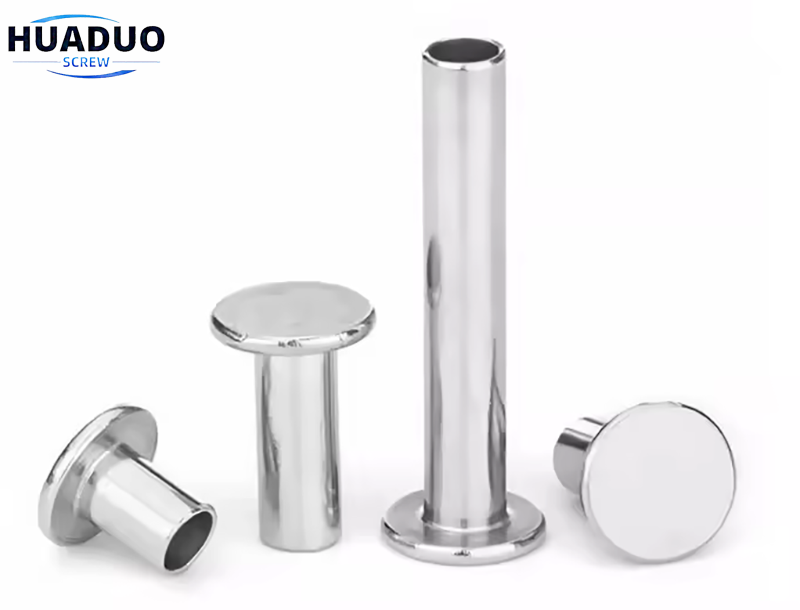

Flat Round Oval Truss Head Half Semi Tubular Hollow Rivet

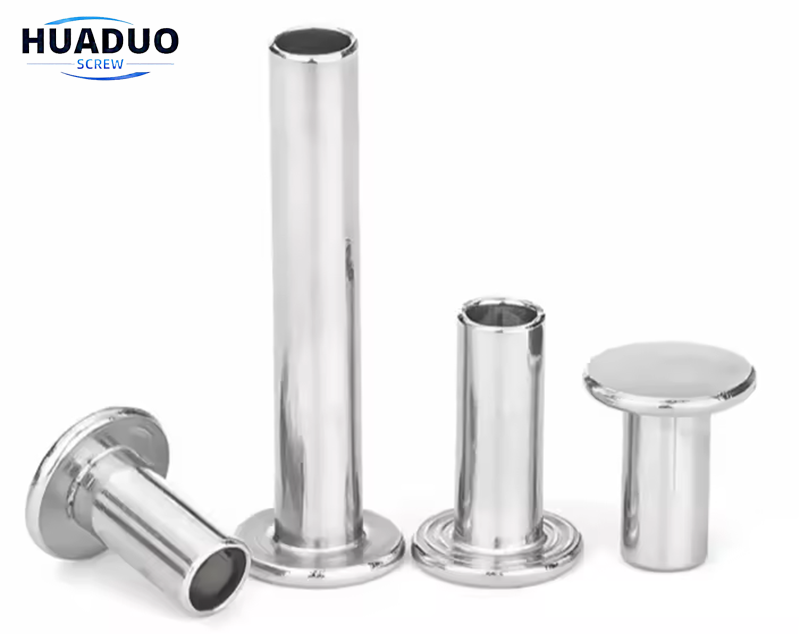

Tubular-hole rivets often used to pierce and clinch materials without a pre-drilled or punched work-piece hole.Inexpensive alternative to threaded fasteners, permanent fastener with good joint strength.

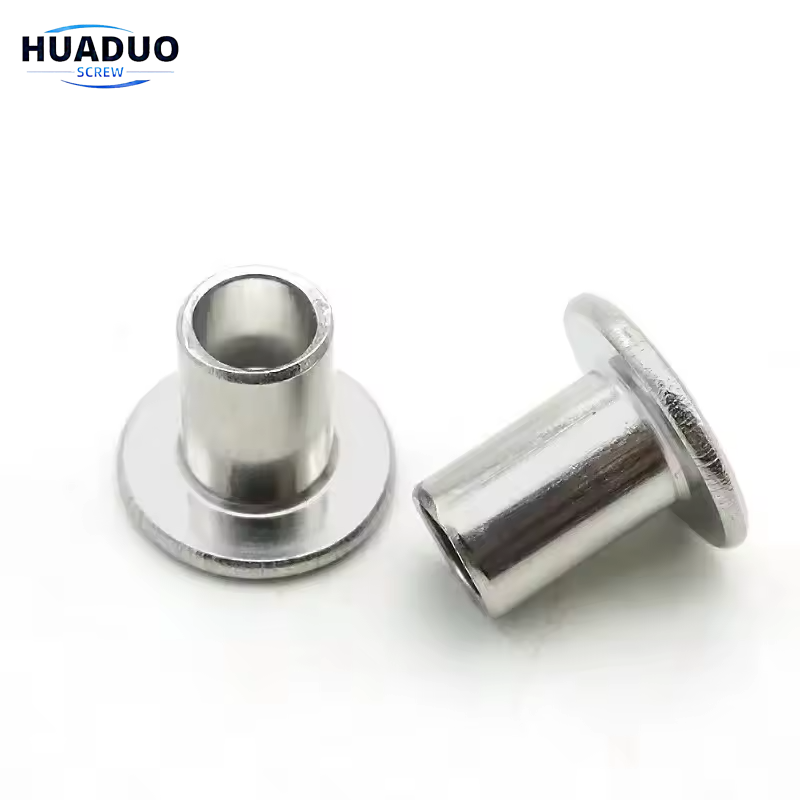

Semi-Tubular Rivets (also known as Tubular Rivets) are similar to solid rivets, except they have a partial hole (opposite the head) at the tip. The purpose of this hole is to reduce the amount of force needed for application by rolling the tubular portion outward. The force needed to apply a semi-tubular rivet is about 1/4 of the amount needed to apply a solid rivet. Tubular Rivets can also be used as pivot points (a joint where movement is preferred) since the swelling of the rivet is only at the tail. Permanent fastener with good joint strength.

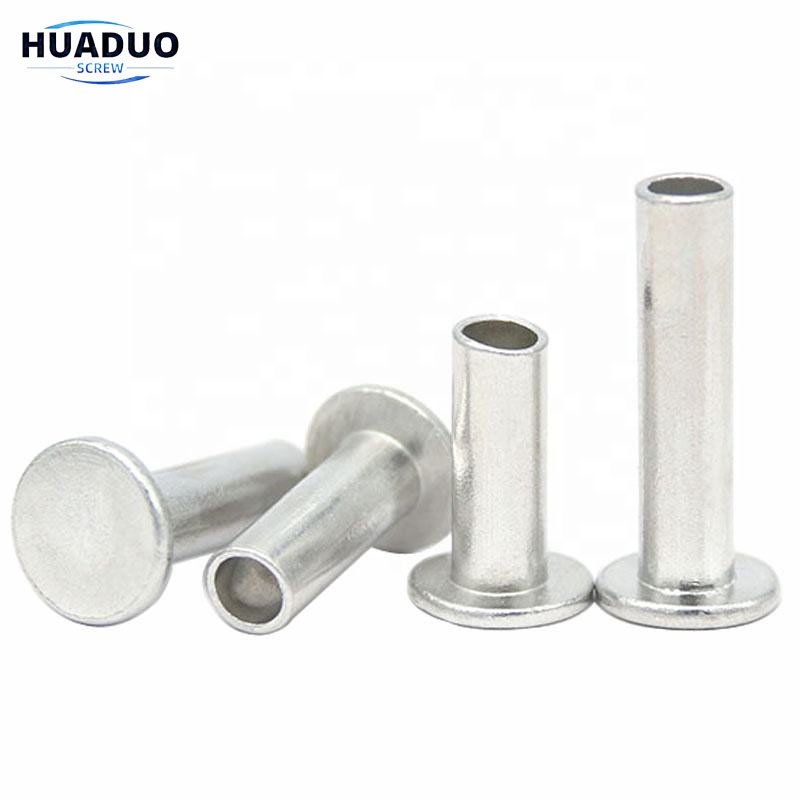

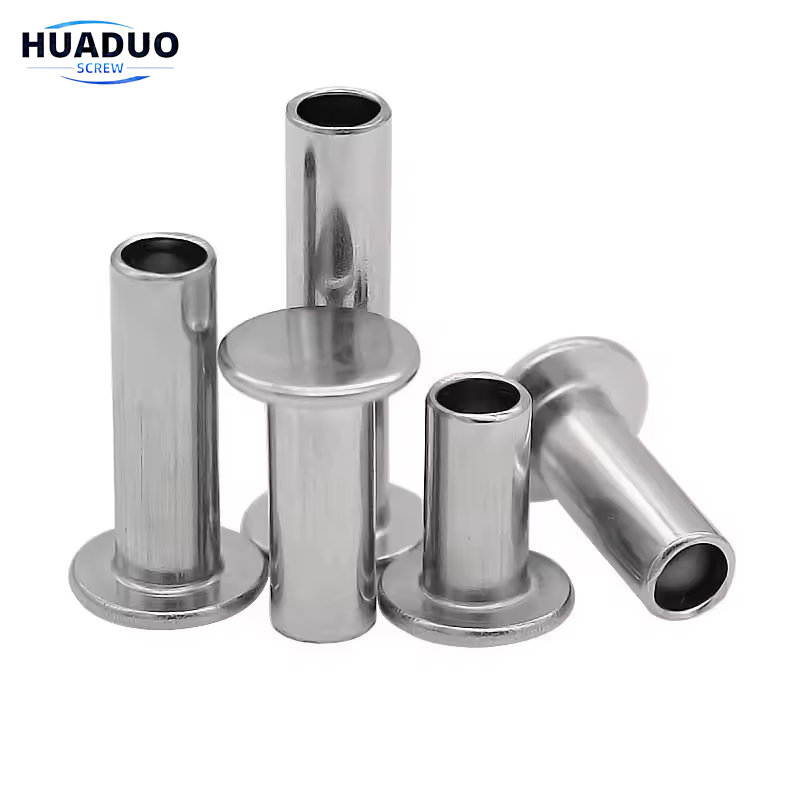

Round head semi-tubular rivets are fasteners used to permanently join or fasten materials together. They consist of a cylindrical shaft with a rounded head on one end and a tapered end on the other. Unlike solid rivets, semi-tubular rivets have a hole in the tail end, which allows for a more uniform deformation when they are riveted.

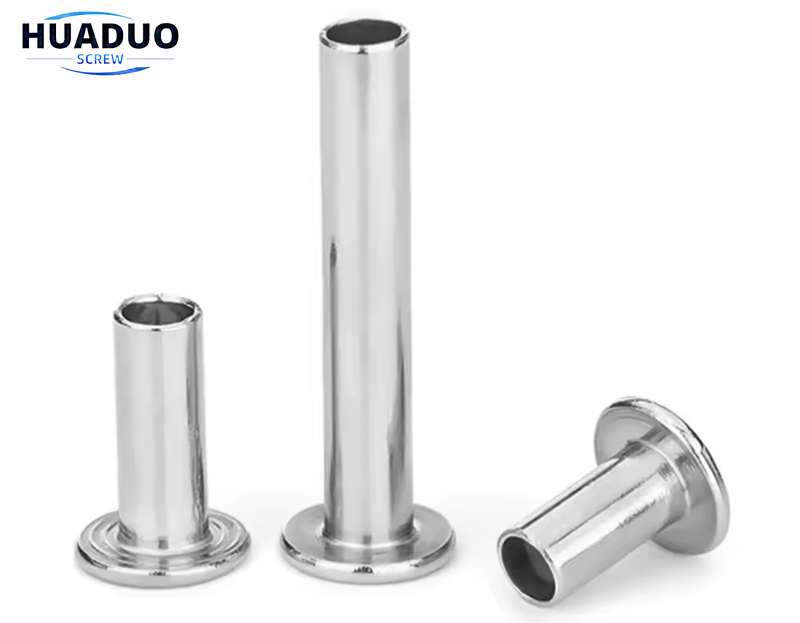

Round head semi-tubular rivets are commonly used in various industries, including automotive, electronics, and manufacturing. They are applied in scenarios where a strong and permanent connection is needed, but with the flexibility to adjust or disassemble the connection if necessary. Common uses of round head semi-tubular rivets include securing electrical components, fastening brake linings to metal backing plates, and joining thin materials, where a reliable and semi-permanent connection is required. These rivets are known for their strength and versatility in applications where both permanent fastening and potential future servicing or disassembly are important.
