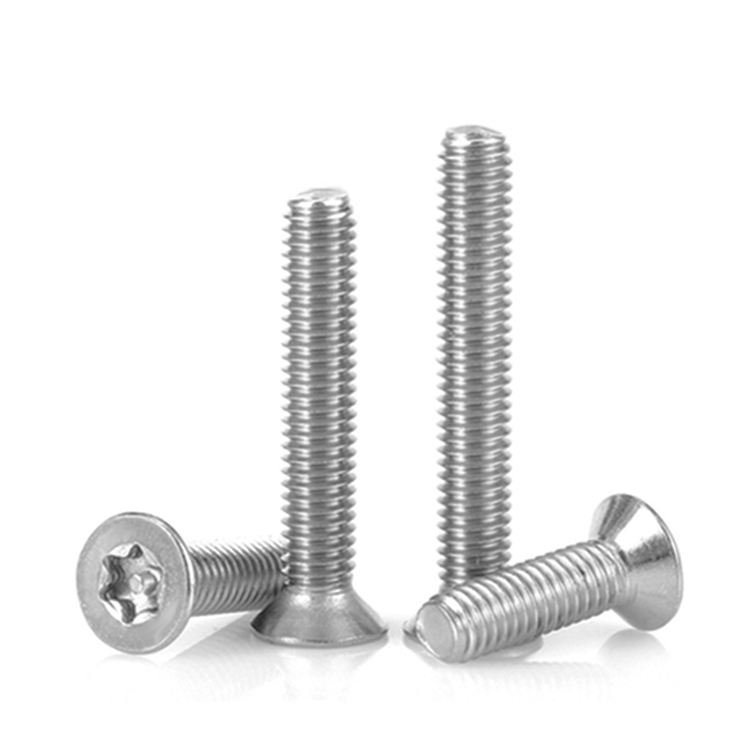

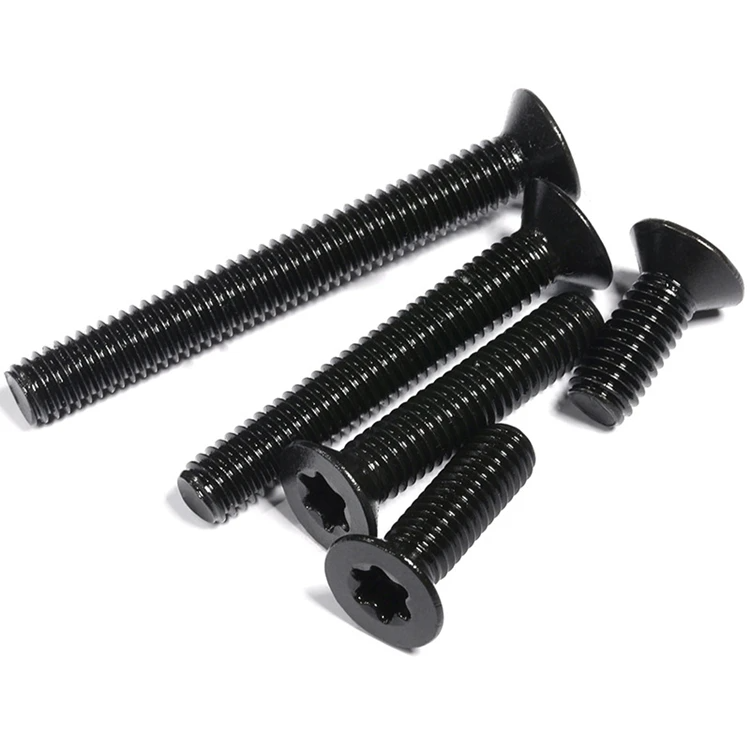

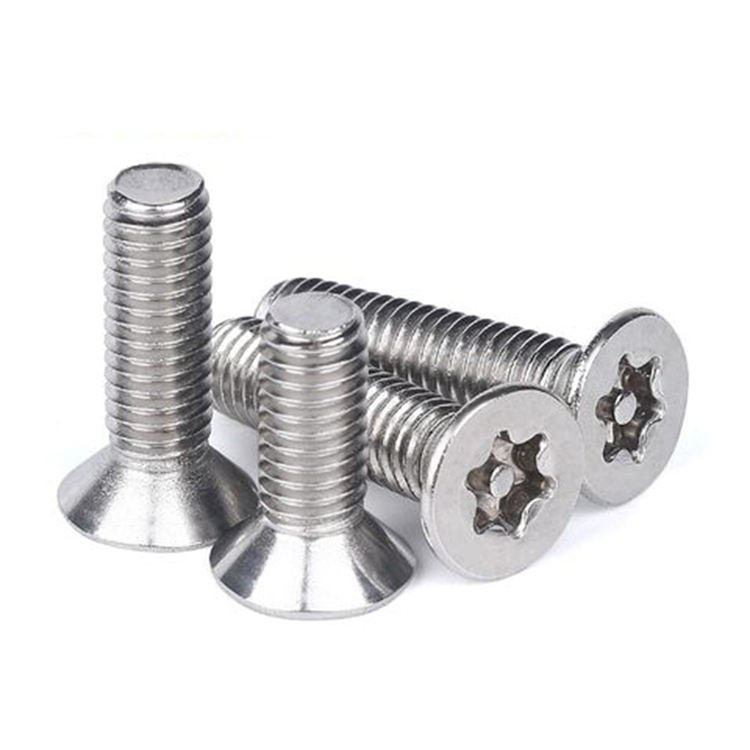

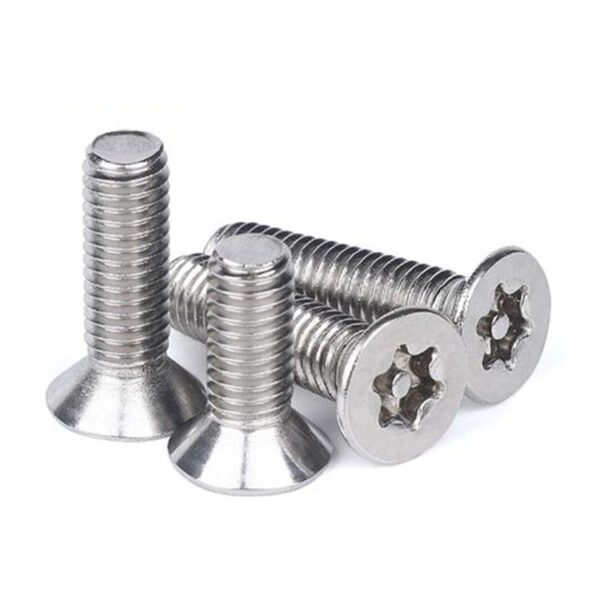

Flat Countersunk Torx Head Machine Screw

Material: Stainless Steel 304,Steel

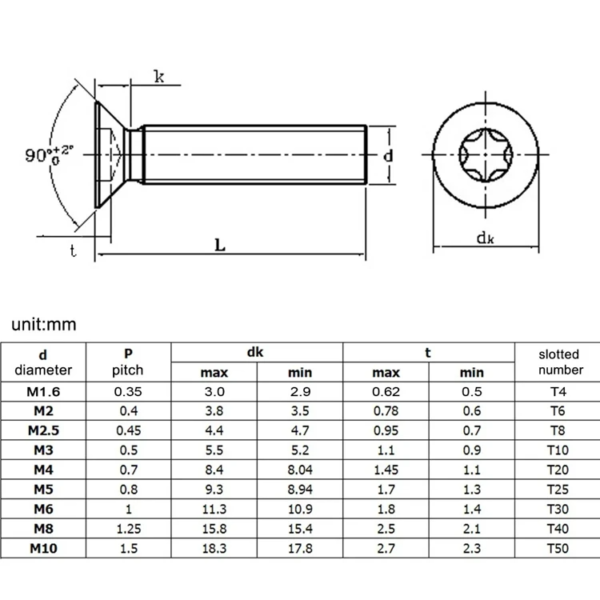

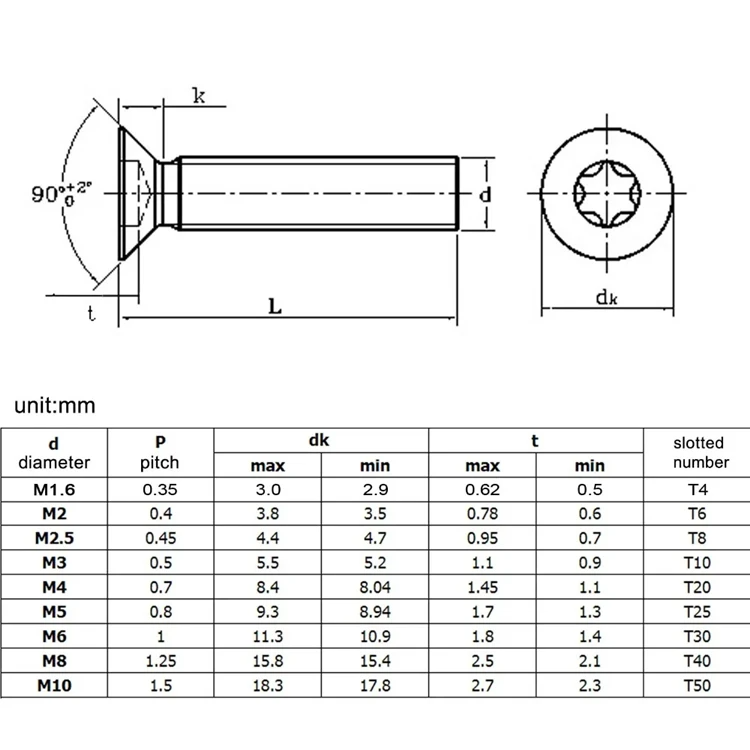

Standard: DIN965/ISO14581

Diameter: M2 M2.5 M3 M4 M5 M6 M8 M10

Length :3mm-100mm (Including the head )

Head Type: Torx Countersunk Head

Pitch Size : M1.6-0.35, M2-0.4, M2.5-0.45, M3-0.5, M4-0.7, M5-0.8, M6-1.0, M8-1.25 , M10-1.5

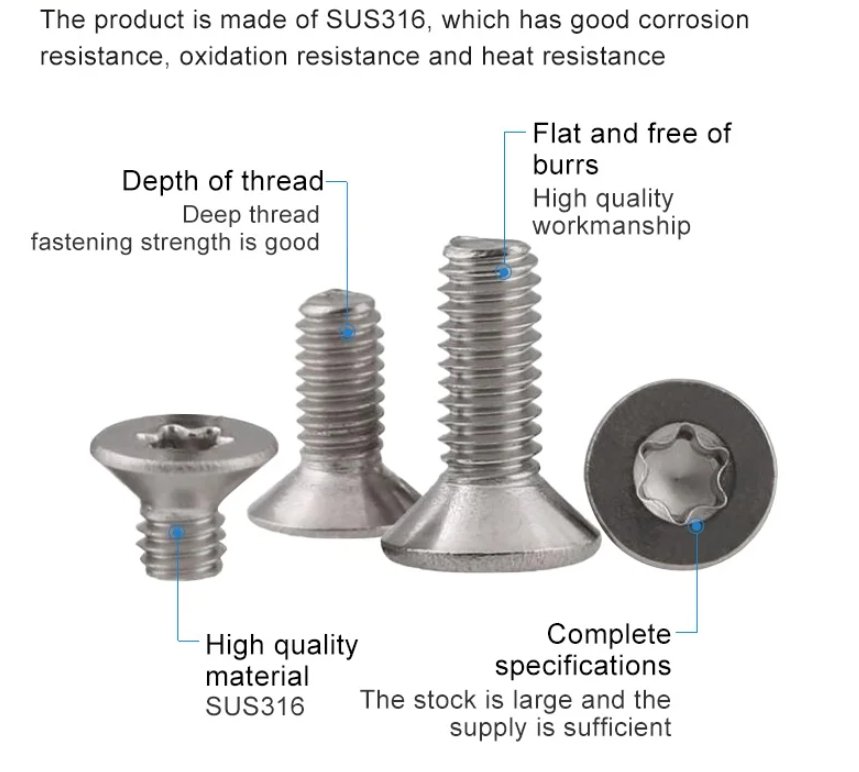

Features: Corrosion-resistance ,Anti-rust , Oxidation resistant Durable and Long Lasting

Usage: Wood, Machine,Metal ,Construction,Furniture,Building,Electronic

PRODUCT DETAILS:

Flat Countersunk Torx Head Machine Screw in stainless steel, sizes range from 2.9mm to 6.3mm, non-standard sizes available upon request and design.

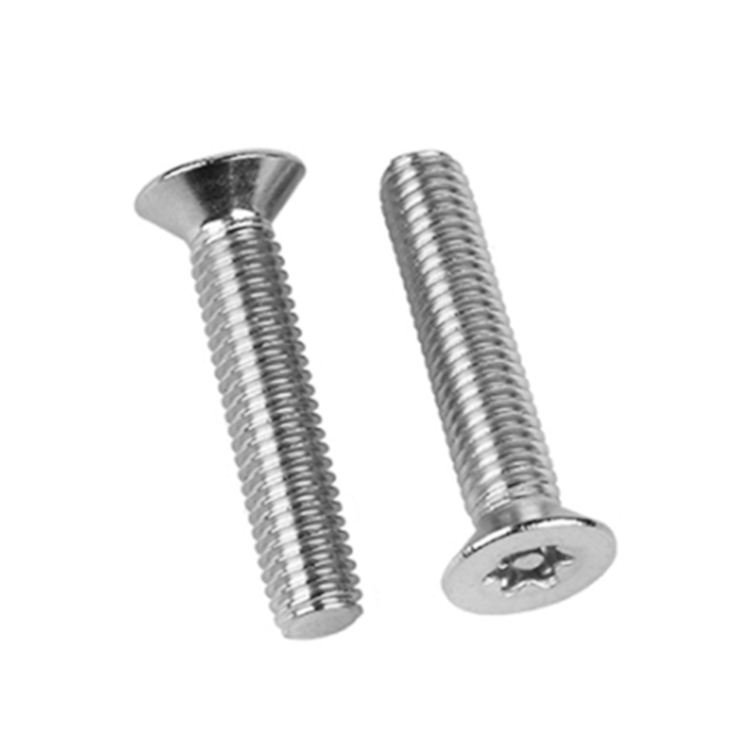

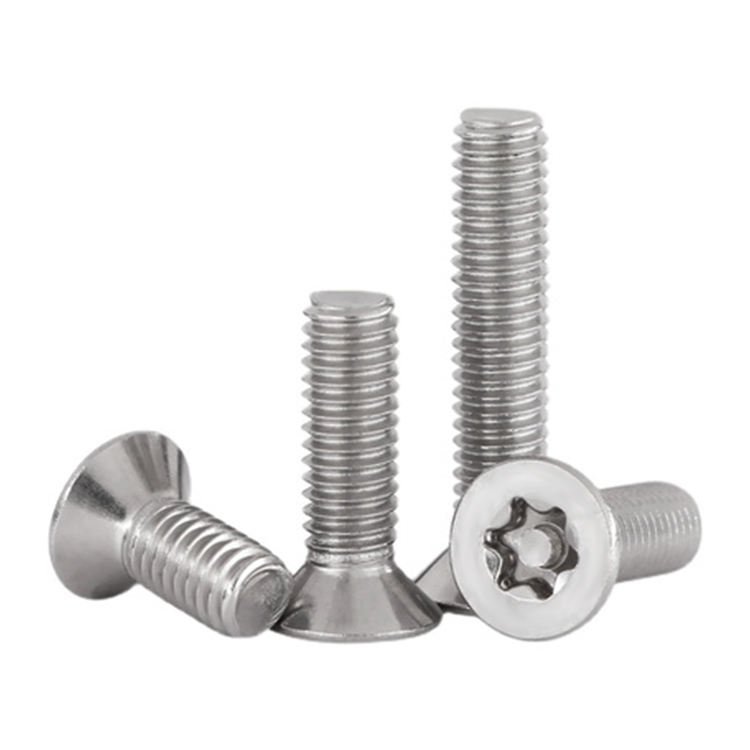

The Flat Countersunk Torx Head Machine Screw is a screw with a flat head and a Torx drive slot. The head of this screw is designed to fit into a corresponding countersunk hole so that the head is flush with the surface and is often used in applications where aesthetic appearance or surface flatness are required. The Torx drive slot provides better torque transmission and wear resistance.

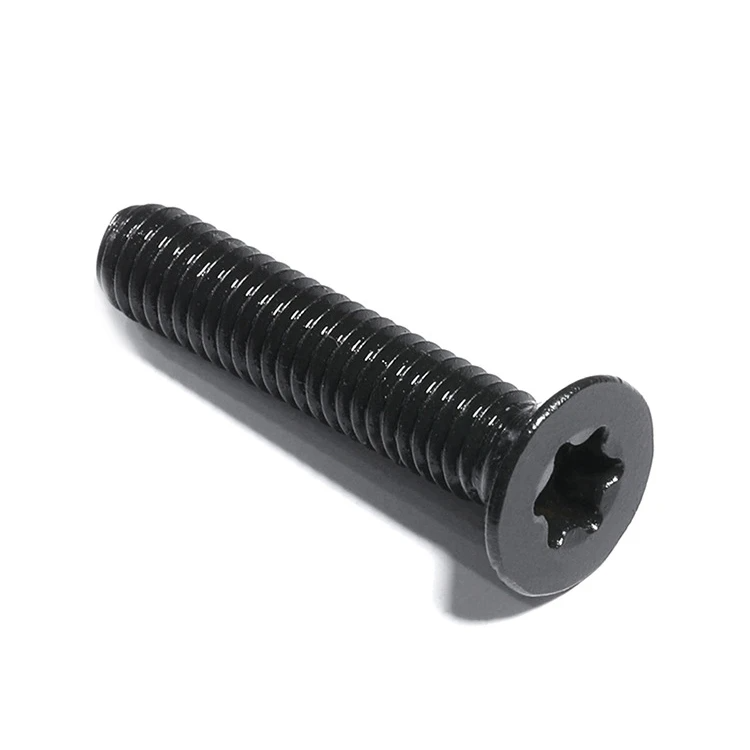

Flat Countersunk Torx Head Bolt is widely used in various industrial and commercial fields, including automotive, aviation, electronic equipment, furniture manufacturing, etc.
